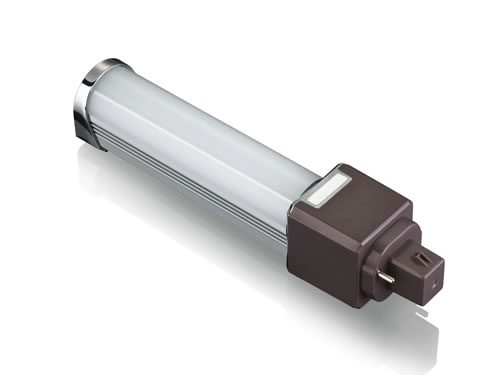

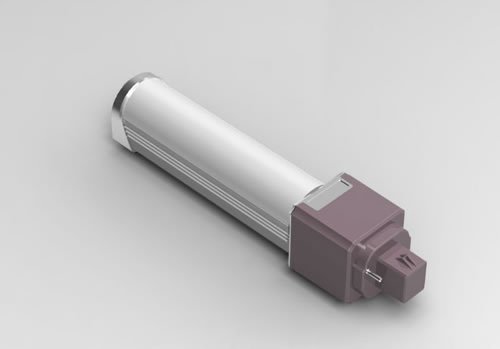

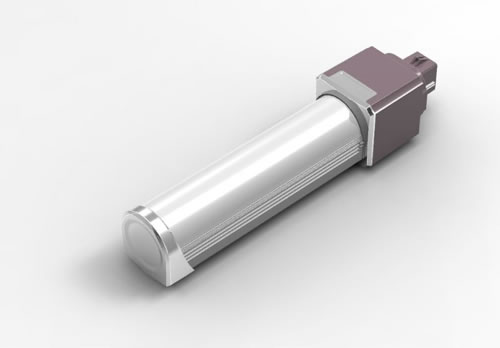

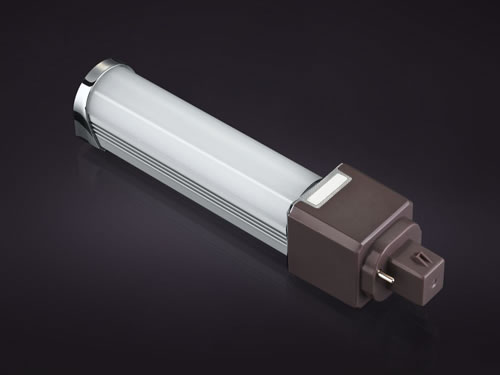

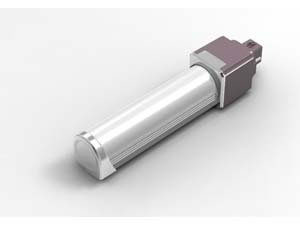

6W PL LED Lamp

Application
6W LED PL lamps are widely used in the situations where traditional fluorescent lamps would generally be used. Our 6W G24 LED PL lights are available for almost all kinds of circumstances that need light, such as factories, hotels, stores and offices.

Features
1.This 6W LED PL lamp can save more than 50% energy.
2.It is designed and manufactured in accordance with the shape, length and brightness of traditional PL lamp.
3.This 6W LED PL lamp can recognize whether the light was turned off due to a grid power lost or by a person automatically.
4.This 6W G24 LED PL light enables to maintain light at least for 3 hours.
5.The largest power for the emergency solution is ≤3W.
6.The PL LED lamp can be equipped with multifunctional TEST switches.
7.This 6W LED PL lamp offers excellent protecting functions such as battery protection when the voltage is low and there is a short circuit.
8.Because we solve the heat dissipation problem, our 6W G24 LED PL light can replace traditional 13W PL lamp.

Advantages
We fully take the power supply and LED heat dissipation into consideration when designing this 6W LED PL lamp light. The power source is separated from PCB and radiator, this can ensure the temperature of LED and power supply will not influence each other.

Operation and Notes
1. Please maintain normal voltage required
2. When the 6W PL LED lamp is working, the outside temperature should be maintained between -20℃ and 65℃.
3. Storage temperature should be kept at -40 to +85℃
4. 6W LED bulb is not allowed to use in the moist or corrosive environment.
5. Please use the G24 6W LED PL lamp according to the instruction and avoid electric shock. Laypeople do not mount or take down.
6. If any doubt about the installation or use of this 6W G24 LED PL light, please consult a competent electrician
7. Don't use it if aluminum of the 6W LED PL lamp has any damage or distortion. Otherwise the product or the installation may not be sufficiently safe.
8. Please switch off the mains supply or respectively the connection lead before doing any work.

Parameters of 6W PL LED Lamp

Product	6W PL Lamp	8W PL Lamp	10W PL Lamp
D	35mm	35mm	35mm
L	133mm	166mm	181mm
LED Type	SMD	SMD	SMD
LED Qty	24pcs	36pcs	40pcs
Lumens	530Lm	690Lm	900Lm

Packaging and Transportation

PL Lamp	Outer Carton size (L*W*H)  mm	Qty/Carton (pcs)	N.W (kg)	G.W (kg)
6W	425mmX425mmX220mm	100	8	10
8W	425mmX425mmX220mm	100	9.5	11.5
10W	425mmX425mmX220mm	100	11	13

FusionBrite Technology Co., Ltd. is a professional manufacturer and supplier of G24 6W LED PL lamp in China. Besides 6W G24 LED PL light, we also offer standard LED tube light, emergency LED tube, electronic ballast compliant LED tube, combined LED tube light, external driver LED tube light, LED PL light, LED bulb light and LED spotlight. We not only have world-class R&D equipment, but also possess a powerful high-quality R&D team that can finish the OEM sample within seven days.
